Datapoints for p + ag106 -> n + cd106
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.760265e-41 |
| 0.15 | 3.009078e-30 |
| 0.2 | 2.148926e-24 |
| 0.3 | 4.985590e-18 |
| 0.4 | 1.905882e-14 |
| 0.5 | 4.823949e-12 |
| 0.6 | 2.895602e-10 |
| 0.7 | 7.267492e-09 |
| 0.8 | 1.023574e-07 |
| 0.9 | 9.585878e-07 |
| 1 | 6.634749e-06 |
| 1.5 | 7.083532e-03 |
| 2 | 6.881902e-01 |
| 2.5 | 1.964680e+01 |
| 3 | 2.630916e+02 |
| 3.5 | 2.091159e+03 |
| 4 | 1.130492e+04 |
| 4.5 | 4.531901e+04 |
| 5 | 1.428497e+05 |
| 6 | 8.066791e+05 |
| 7 | 2.547037e+06 |
| 8 | 5.150195e+06 |
| 9 | 7.291901e+06 |
| 10 | 7.693943e+06 |

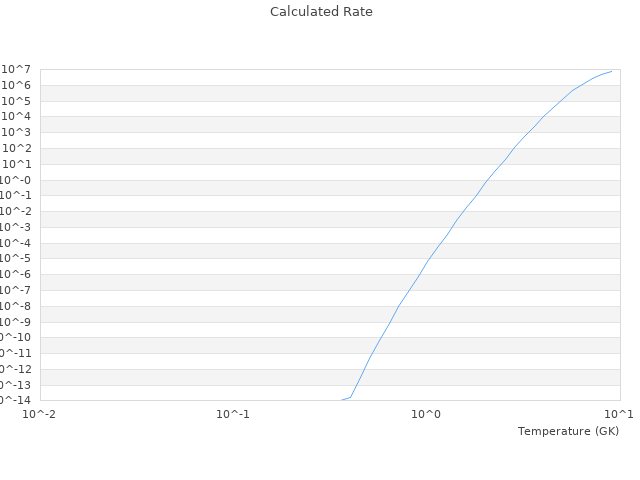

| View Graph | |
