Datapoints for p + ag109 -> n + cd109
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.491349e-55 |
| 0.15 | 6.597716e-38 |
| 0.2 | 4.155763e-29 |
| 0.3 | 4.707109e-20 |
| 0.4 | 2.550770e-15 |
| 0.5 | 2.421232e-12 |
| 0.6 | 2.934883e-10 |
| 0.7 | 1.073515e-08 |
| 0.8 | 1.829762e-07 |
| 0.9 | 1.854974e-06 |
| 1 | 1.297035e-05 |
| 1.5 | 9.704272e-03 |
| 2 | 5.864631e-01 |
| 2.5 | 1.124019e+01 |
| 3 | 1.115474e+02 |
| 3.5 | 7.185737e+02 |
| 4 | 3.393467e+03 |
| 4.5 | 1.263482e+04 |
| 5 | 3.887256e+04 |
| 6 | 2.339399e+05 |
| 7 | 8.728901e+05 |
| 8 | 2.221879e+06 |
| 9 | 4.100764e+06 |
| 10 | 5.721889e+06 |

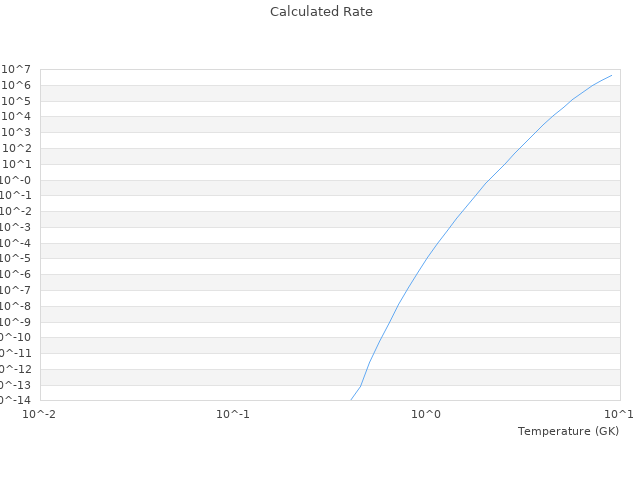

| View Graph | |
