Datapoints for p + ir177 -> n + pt177
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 1.096347e-246 |
| 0.2 | 2.499505e-183 |
| 0.3 | 5.905376e-120 |
| 0.4 | 2.932346e-88 |
| 0.5 | 3.095600e-69 |
| 0.6 | 1.507350e-56 |
| 0.7 | 1.760125e-47 |
| 0.8 | 1.123944e-40 |
| 0.9 | 2.229679e-35 |
| 1 | 3.896237e-31 |
| 1.5 | 2.325598e-18 |
| 2 | 6.590101e-12 |
| 2.5 | 5.497255e-08 |
| 3 | 2.459218e-05 |
| 3.5 | 2.038153e-03 |
| 4 | 5.803424e-02 |
| 4.5 | 7.990985e-01 |
| 5 | 6.527425e+00 |
| 6 | 1.462178e+02 |
| 7 | 1.199384e+03 |
| 8 | 4.879168e+03 |
| 9 | 1.164908e+04 |
| 10 | 1.806400e+04 |

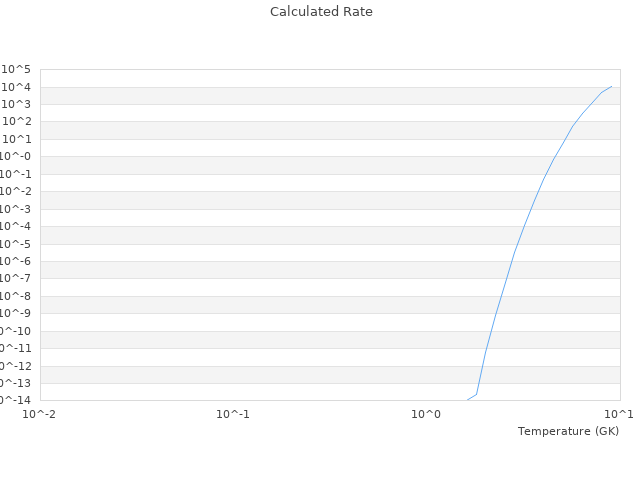

| View Graph | |
