Datapoints for p + pd117 -> ag118
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 8.348897e-39 |
| 0.15 | 2.694341e-29 |
| 0.2 | 1.969072e-24 |
| 0.3 | 3.516471e-19 |
| 0.4 | 3.659936e-16 |
| 0.5 | 4.452545e-14 |
| 0.6 | 1.712072e-12 |
| 0.7 | 3.218606e-11 |
| 0.8 | 3.712298e-10 |
| 0.9 | 2.999636e-09 |
| 1 | 1.847333e-08 |
| 1.5 | 1.276751e-05 |
| 2 | 8.025516e-04 |
| 2.5 | 1.404651e-02 |
| 3 | 1.115176e-01 |
| 3.5 | 5.208246e-01 |
| 4 | 1.671779e+00 |
| 4.5 | 4.078419e+00 |
| 5 | 8.099977e+00 |
| 6 | 2.070020e+01 |
| 7 | 3.618567e+01 |
| 8 | 5.043303e+01 |
| 9 | 6.174948e+01 |
| 10 | 7.085367e+01 |

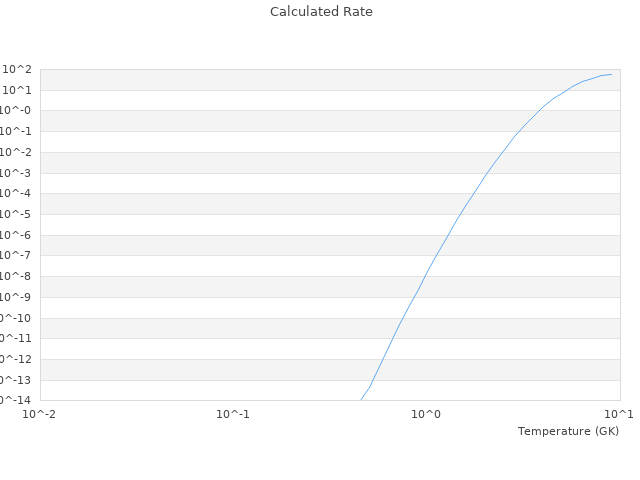

| View Graph | |
