Datapoints for p + pd92 -> ag93
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.496851e-65 |
| 0.15 | 3.825958e-44 |
| 0.2 | 1.174326e-33 |
| 0.3 | 4.667949e-23 |
| 0.4 | 1.160453e-17 |
| 0.5 | 2.330918e-14 |
| 0.6 | 4.144714e-12 |
| 0.7 | 1.825703e-10 |
| 0.8 | 3.338418e-09 |
| 0.9 | 3.379507e-08 |
| 1 | 2.252637e-07 |
| 1.5 | 9.753868e-05 |
| 2 | 2.943693e-03 |
| 2.5 | 2.820586e-02 |
| 3 | 1.448101e-01 |
| 3.5 | 5.028797e-01 |
| 4 | 1.333660e+00 |
| 4.5 | 2.898133e+00 |
| 5 | 5.393582e+00 |
| 6 | 1.308571e+01 |
| 7 | 2.207338e+01 |
| 8 | 2.808917e+01 |
| 9 | 2.835550e+01 |
| 10 | 2.347970e+01 |

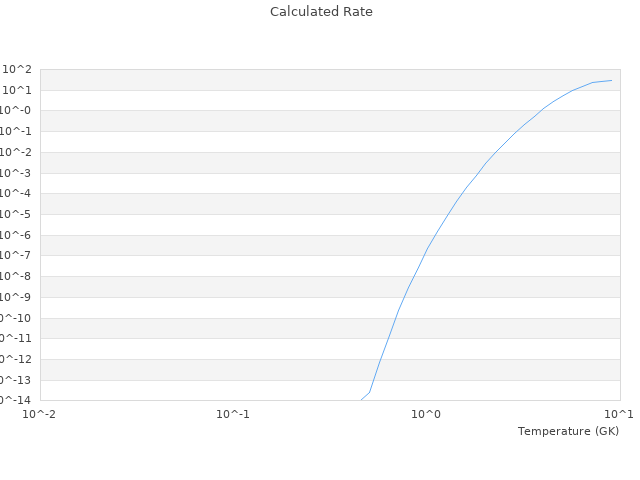

| View Graph | |
