Datapoints for at196 -> he4 + bi192
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 3.162969e-259 |
| 0.2 | 1.422736e-180 |
| 0.3 | 2.724729e-99 |
| 0.4 | 7.358586e-60 |
| 0.5 | 6.316357e-38 |
| 0.6 | 1.115102e-24 |
| 0.7 | 3.185570e-16 |
| 0.8 | 1.325804e-10 |
| 0.9 | 9.439930e-07 |
| 1 | 4.839469e-04 |
| 1.5 | 4.074508e+02 |
| 2 | 3.349717e+04 |
| 2.5 | 5.046829e+05 |
| 3 | 5.611482e+06 |
| 3.5 | 5.678513e+07 |
| 4 | 5.062068e+08 |
| 4.5 | 3.737394e+09 |
| 5 | 2.188051e+10 |
| 6 | 3.525477e+11 |
| 7 | 2.221113e+12 |
| 8 | 6.754926e+12 |
| 9 | 1.304865e+13 |
| 10 | 2.134417e+13 |

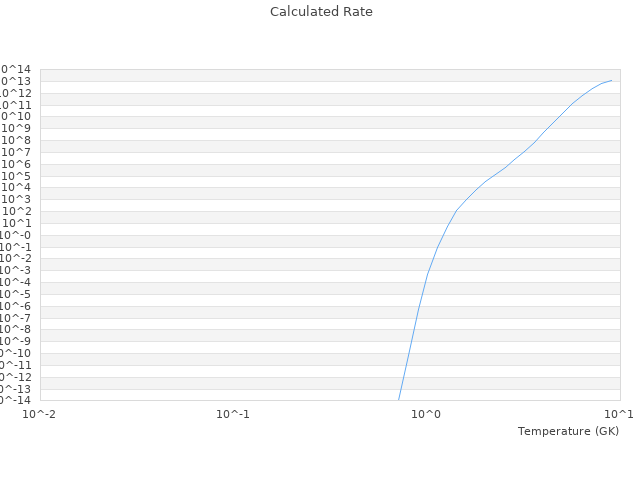

| View Graph | |
