Datapoints for au177 -> he4 + ir173
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.531736e-307 |
| 0.15 | 3.117160e-192 |
| 0.2 | 3.981034e-130 |
| 0.3 | 1.635088e-67 |
| 0.4 | 4.142182e-38 |
| 0.5 | 2.923715e-22 |
| 0.6 | 5.450218e-13 |
| 0.7 | 2.894351e-07 |
| 0.8 | 1.374042e-03 |
| 0.9 | 3.727774e-01 |
| 1 | 1.674489e+01 |
| 1.5 | 4.011785e+04 |
| 2 | 5.874848e+05 |
| 2.5 | 5.251433e+06 |
| 3 | 5.069334e+07 |
| 3.5 | 4.962310e+08 |
| 4 | 4.338209e+09 |
| 4.5 | 3.092101e+10 |
| 5 | 1.712656e+11 |
| 6 | 2.378805e+12 |
| 7 | 1.298335e+13 |
| 8 | 3.646800e+13 |
| 9 | 7.244606e+13 |
| 10 | 1.397708e+14 |

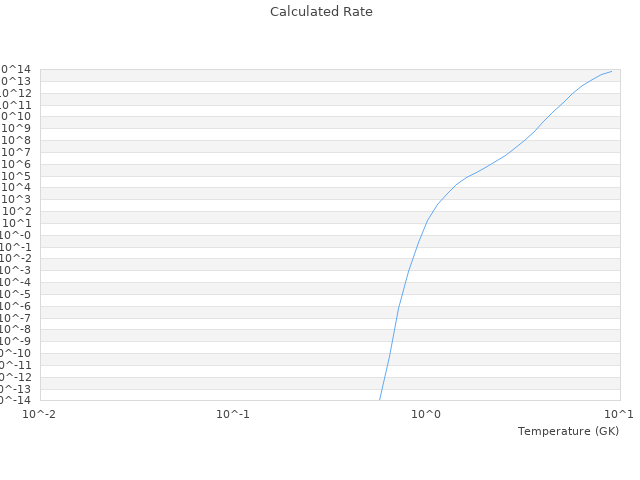

| View Graph | |
