Datapoints for p + pt176 -> au177
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.514232e-63 |
| 0.15 | 2.070421e-45 |
| 0.2 | 4.077992e-37 |
| 0.3 | 1.474412e-28 |
| 0.4 | 9.095476e-24 |
| 0.5 | 1.721783e-20 |
| 0.6 | 5.108314e-18 |
| 0.7 | 4.778963e-16 |
| 0.8 | 2.025574e-14 |
| 0.9 | 4.813596e-13 |
| 1 | 7.353532e-12 |
| 1.5 | 1.001663e-07 |
| 2 | 3.236628e-05 |
| 2.5 | 1.624545e-03 |
| 3 | 2.798200e-02 |
| 3.5 | 2.460221e-01 |
| 4 | 1.375428e+00 |
| 4.5 | 5.566700e+00 |
| 5 | 1.766866e+01 |
| 6 | 1.033642e+02 |
| 7 | 3.462208e+02 |
| 8 | 7.321303e+02 |
| 9 | 1.016618e+03 |
| 10 | 9.379896e+02 |

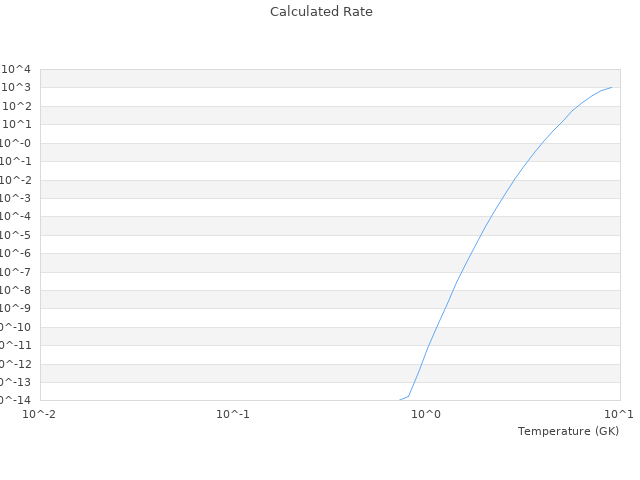

| View Graph | |
