Datapoints for cd109 -> he4 + pd105
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.288044e-210 |
| 0.15 | 3.788148e-151 |
| 0.2 | 1.081210e-119 |
| 0.3 | 1.311044e-85 |
| 0.4 | 7.013791e-67 |
| 0.5 | 9.522166e-55 |
| 0.6 | 4.075035e-46 |
| 0.7 | 1.358527e-39 |
| 0.8 | 1.883384e-34 |
| 0.9 | 2.857749e-30 |
| 1 | 8.664199e-27 |
| 1.5 | 2.270874e-15 |
| 2 | 6.883350e-09 |
| 2.5 | 1.209454e-04 |
| 3 | 1.244204e-01 |
| 3.5 | 2.213762e+01 |
| 4 | 1.221724e+03 |
| 4.5 | 2.957684e+04 |
| 5 | 3.915991e+05 |
| 6 | 1.941074e+07 |
| 7 | 3.114004e+08 |
| 8 | 2.416451e+09 |
| 9 | 1.152782e+10 |
| 10 | 3.939671e+10 |

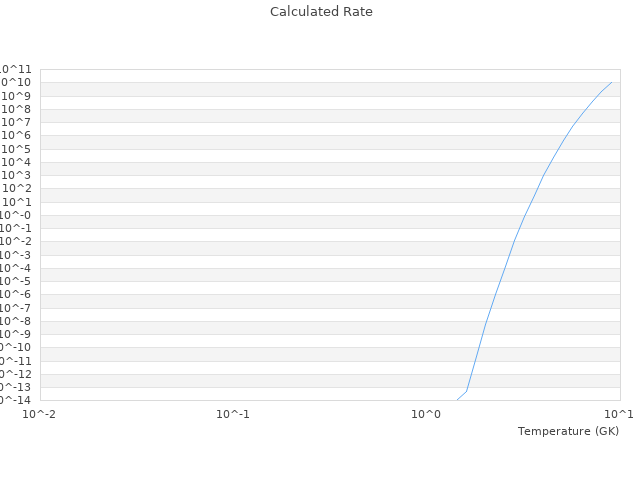

| View Graph | |
