Datapoints for p + ag113 -> cd114
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.473352e-38 |
| 0.15 | 7.601943e-29 |
| 0.2 | 5.923925e-24 |
| 0.3 | 1.259169e-18 |
| 0.4 | 1.507597e-15 |
| 0.5 | 2.017837e-13 |
| 0.6 | 8.237632e-12 |
| 0.7 | 1.601654e-10 |
| 0.8 | 1.874893e-09 |
| 0.9 | 1.517088e-08 |
| 1 | 9.268415e-08 |
| 1.5 | 5.789518e-05 |
| 2 | 3.275627e-03 |
| 2.5 | 5.393221e-02 |
| 3 | 4.252421e-01 |
| 3.5 | 2.079557e+00 |
| 4 | 7.333571e+00 |
| 4.5 | 2.050669e+01 |
| 5 | 4.843498e+01 |
| 6 | 1.916892e+02 |
| 7 | 5.695880e+02 |
| 8 | 1.441764e+03 |
| 9 | 3.354112e+03 |
| 10 | 7.524302e+03 |

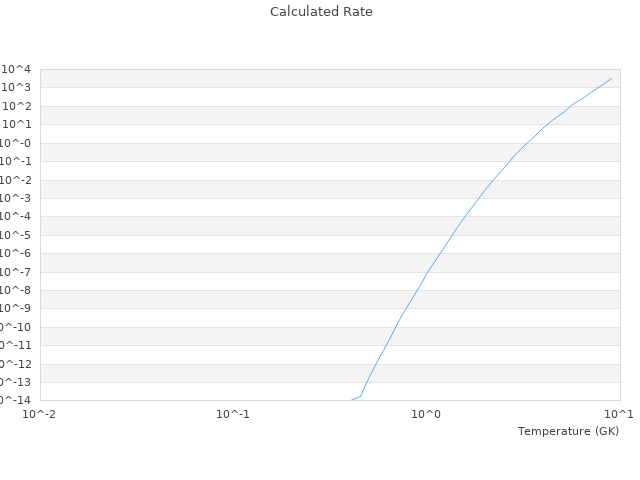

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
