Datapoints for p + ag93 -> cd94
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 7.784734e-34 |
| 0.15 | 2.296813e-27 |
| 0.2 | 2.704790e-23 |
| 0.3 | 3.226868e-18 |
| 0.4 | 4.766147e-15 |
| 0.5 | 8.031368e-13 |
| 0.6 | 3.798130e-11 |
| 0.7 | 7.882511e-10 |
| 0.8 | 9.235402e-09 |
| 0.9 | 7.130850e-08 |
| 1 | 4.015208e-07 |
| 1.5 | 1.287832e-04 |
| 2 | 3.296729e-03 |
| 2.5 | 2.495274e-02 |
| 3 | 9.491288e-02 |
| 3.5 | 2.359689e-01 |
| 4 | 4.443990e-01 |
| 4.5 | 6.937978e-01 |
| 5 | 9.521228e-01 |
| 6 | 1.412373e+00 |
| 7 | 1.775151e+00 |
| 8 | 2.112243e+00 |
| 9 | 2.541947e+00 |
| 10 | 3.225323e+00 |

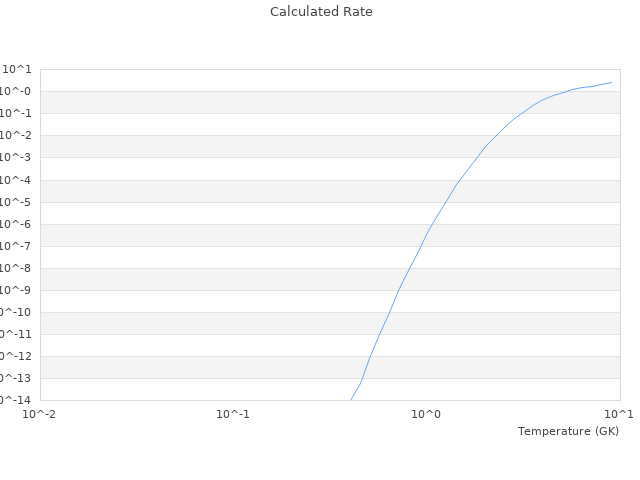

| View Graph | |
