Datapoints for p + xe137 -> cs138
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.394143e-60 |
| 0.15 | 1.079492e-40 |
| 0.2 | 3.871994e-31 |
| 0.3 | 2.462625e-22 |
| 0.4 | 2.219625e-18 |
| 0.5 | 3.863836e-16 |
| 0.6 | 1.215535e-14 |
| 0.7 | 1.640160e-13 |
| 0.8 | 1.391150e-12 |
| 0.9 | 8.925442e-12 |
| 1 | 4.766992e-11 |
| 1.5 | 4.492757e-08 |
| 2 | 8.366641e-06 |
| 2.5 | 4.500683e-04 |
| 3 | 8.646388e-03 |
| 3.5 | 7.181494e-02 |
| 4 | 3.066350e-01 |
| 4.5 | 7.840970e-01 |
| 5 | 1.370965e+00 |
| 6 | 2.083519e+00 |
| 7 | 2.251997e+00 |
| 8 | 3.009273e+00 |
| 9 | 7.566469e+00 |
| 10 | 4.949585e+01 |

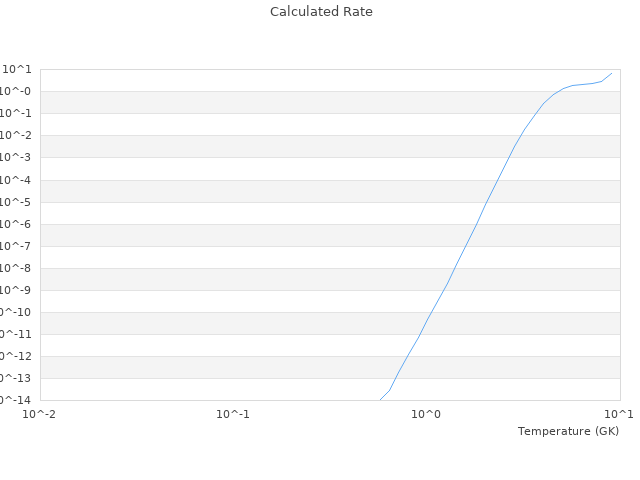

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
