Datapoints for n + gd145 -> gd146
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.152184e+08 |
| 0.15 | 6.160571e+08 |
| 0.2 | 6.142933e+08 |
| 0.3 | 5.519024e+08 |
| 0.4 | 5.030259e+08 |
| 0.5 | 4.767983e+08 |
| 0.6 | 4.669363e+08 |
| 0.7 | 4.681591e+08 |
| 0.8 | 4.769723e+08 |
| 0.9 | 4.910615e+08 |
| 1 | 5.088157e+08 |
| 1.5 | 6.182775e+08 |
| 2 | 7.081042e+08 |
| 2.5 | 7.390466e+08 |
| 3 | 7.044545e+08 |
| 3.5 | 6.199375e+08 |
| 4 | 5.098387e+08 |
| 4.5 | 3.963106e+08 |
| 5 | 2.941089e+08 |
| 6 | 1.457494e+08 |
| 7 | 6.561438e+07 |
| 8 | 2.797475e+07 |
| 9 | 1.165692e+07 |
| 10 | 4.863828e+06 |

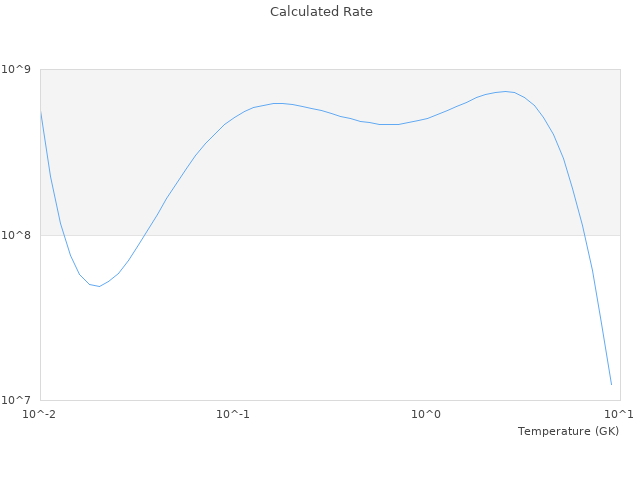

| View Graph | |
