Datapoints for p + os192 -> ir193
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.369311e-143 |
| 0.15 | 6.720992e-85 |
| 0.2 | 1.423166e-56 |
| 0.3 | 1.050939e-31 |
| 0.4 | 3.695576e-22 |
| 0.5 | 6.031753e-18 |
| 0.6 | 6.748762e-16 |
| 0.7 | 8.609517e-15 |
| 0.8 | 4.201571e-14 |
| 0.9 | 1.366560e-13 |
| 1 | 3.847548e-13 |
| 1.5 | 9.075641e-11 |
| 2 | 4.089131e-08 |
| 2.5 | 1.121786e-05 |
| 3 | 1.010463e-03 |
| 3.5 | 2.576367e-02 |
| 4 | 2.017846e-01 |
| 4.5 | 5.817833e-01 |
| 5 | 7.665700e-01 |
| 6 | 3.049290e-01 |
| 7 | 6.478435e-02 |
| 8 | 2.909282e-02 |
| 9 | 8.491423e-02 |
| 10 | 4.003634e+00 |

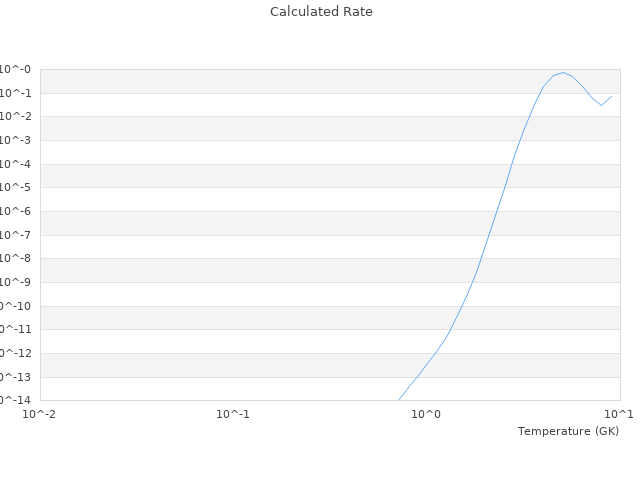

| View Graph | |
