Datapoints for nb81 -> he4 + y77
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 8.372860e-206 |
| 0.15 | 2.839776e-147 |
| 0.2 | 3.977190e-116 |
| 0.3 | 1.099651e-82 |
| 0.4 | 1.717100e-64 |
| 0.5 | 8.602310e-53 |
| 0.6 | 1.626127e-44 |
| 0.7 | 2.745041e-38 |
| 0.8 | 2.141487e-33 |
| 0.9 | 1.987356e-29 |
| 1 | 3.940722e-26 |
| 1.5 | 2.405448e-15 |
| 2 | 3.232546e-09 |
| 2.5 | 3.533998e-05 |
| 3 | 2.764114e-02 |
| 3.5 | 4.243584e+00 |
| 4 | 2.194985e+02 |
| 4.5 | 5.260777e+03 |
| 5 | 7.148143e+04 |
| 6 | 3.957257e+06 |
| 7 | 7.277195e+07 |
| 8 | 6.388256e+08 |
| 9 | 3.321632e+09 |
| 10 | 1.173816e+10 |

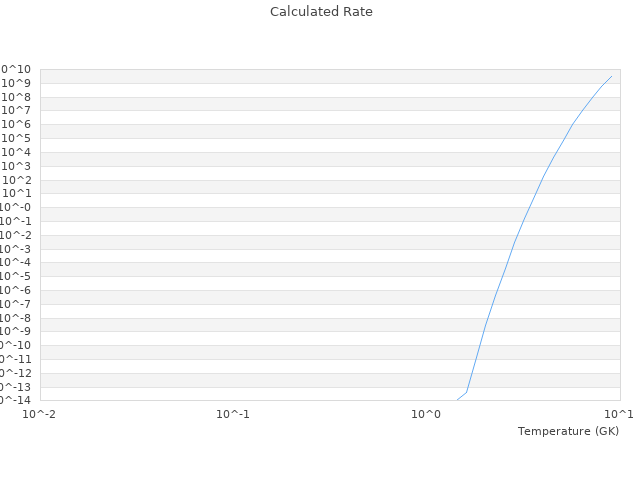

| View Graph | |
