Datapoints for p + tl196 -> pb197
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.307592e-149 |
| 0.15 | 1.692489e-88 |
| 0.2 | 7.036490e-59 |
| 0.3 | 5.909709e-33 |
| 0.4 | 4.874219e-23 |
| 0.5 | 1.147434e-18 |
| 0.6 | 1.568287e-16 |
| 0.7 | 2.313997e-15 |
| 0.8 | 1.289310e-14 |
| 0.9 | 4.799380e-14 |
| 1 | 1.557589e-13 |
| 1.5 | 8.099621e-11 |
| 2 | 7.938956e-08 |
| 2.5 | 4.181567e-05 |
| 3 | 6.221610e-03 |
| 3.5 | 2.278391e-01 |
| 4 | 2.281273e+00 |
| 4.5 | 7.685343e+00 |
| 5 | 1.109817e+01 |
| 6 | 4.802067e+00 |
| 7 | 1.108384e+00 |
| 8 | 6.131457e-01 |
| 9 | 2.759296e+00 |
| 10 | 2.712718e+02 |

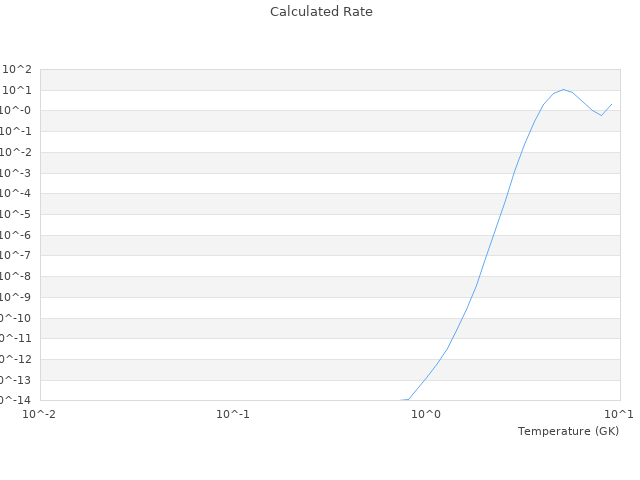

| View Graph | |
