Datapoints for p + nd139 -> pm140
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.456099e-63 |
| 0.15 | 1.773973e-41 |
| 0.2 | 4.114163e-31 |
| 0.3 | 1.408897e-21 |
| 0.4 | 2.670262e-17 |
| 0.5 | 7.120324e-15 |
| 0.6 | 3.015019e-13 |
| 0.7 | 5.157725e-12 |
| 0.8 | 5.378030e-11 |
| 0.9 | 4.167410e-10 |
| 1 | 2.657345e-09 |
| 1.5 | 5.440245e-06 |
| 2 | 1.884599e-03 |
| 2.5 | 1.629034e-01 |
| 3 | 4.407593e+00 |
| 3.5 | 4.603808e+01 |
| 4 | 2.249156e+02 |
| 4.5 | 6.091247e+02 |
| 5 | 1.060172e+03 |
| 6 | 1.395707e+03 |
| 7 | 1.171279e+03 |
| 8 | 1.163230e+03 |
| 9 | 2.188252e+03 |
| 10 | 1.121130e+04 |

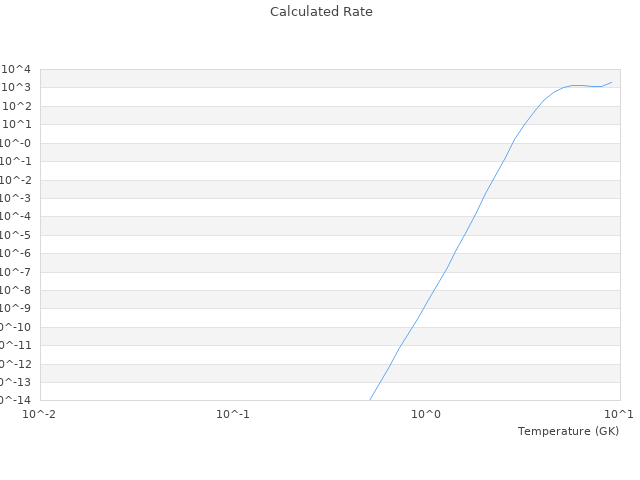

| View Graph | |
