Datapoints for n + pt193 -> pt194
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.746628e+07 |
| 0.15 | 4.754076e+07 |
| 0.2 | 1.008663e+08 |
| 0.3 | 3.029085e+08 |
| 0.4 | 6.660610e+08 |
| 0.5 | 1.213340e+09 |
| 0.6 | 1.945069e+09 |
| 0.7 | 2.840403e+09 |
| 0.8 | 3.861913e+09 |
| 0.9 | 4.961600e+09 |
| 1 | 6.087035e+09 |
| 1.5 | 1.053075e+10 |
| 2 | 1.120015e+10 |
| 2.5 | 9.005842e+09 |
| 3 | 6.051543e+09 |
| 3.5 | 3.596710e+09 |
| 4 | 1.959106e+09 |
| 4.5 | 1.001470e+09 |
| 5 | 4.885352e+08 |
| 6 | 1.057590e+08 |
| 7 | 2.124229e+07 |
| 8 | 4.123133e+06 |
| 9 | 7.942424e+05 |
| 10 | 1.546324e+05 |

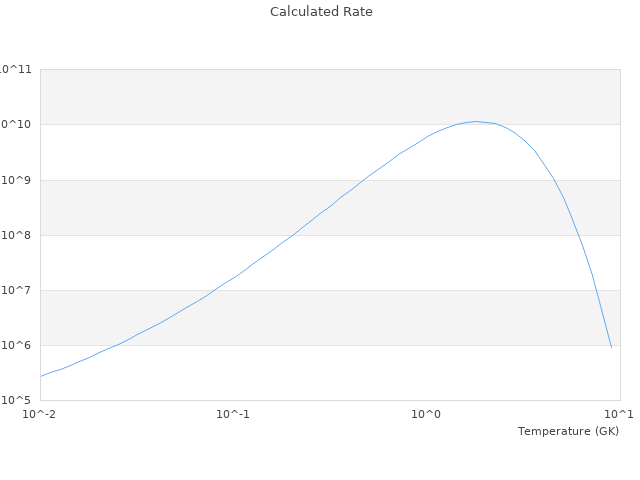

| View Graph | |
