Datapoints for n + pt196 -> pt197
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.133468e+07 |
| 0.15 | 2.347935e+07 |
| 0.2 | 2.495408e+07 |
| 0.3 | 2.714962e+07 |
| 0.4 | 2.899984e+07 |
| 0.5 | 3.076910e+07 |
| 0.6 | 3.254333e+07 |
| 0.7 | 3.435229e+07 |
| 0.8 | 3.620400e+07 |
| 0.9 | 3.809673e+07 |
| 1 | 4.002379e+07 |
| 1.5 | 4.979011e+07 |
| 2 | 5.853632e+07 |
| 2.5 | 6.453968e+07 |
| 3 | 6.649224e+07 |
| 3.5 | 6.391482e+07 |
| 4 | 5.729873e+07 |
| 4.5 | 4.791691e+07 |
| 5 | 3.739935e+07 |
| 6 | 1.857768e+07 |
| 7 | 7.069449e+06 |
| 8 | 2.075162e+06 |
| 9 | 4.730553e+05 |
| 10 | 8.427929e+04 |

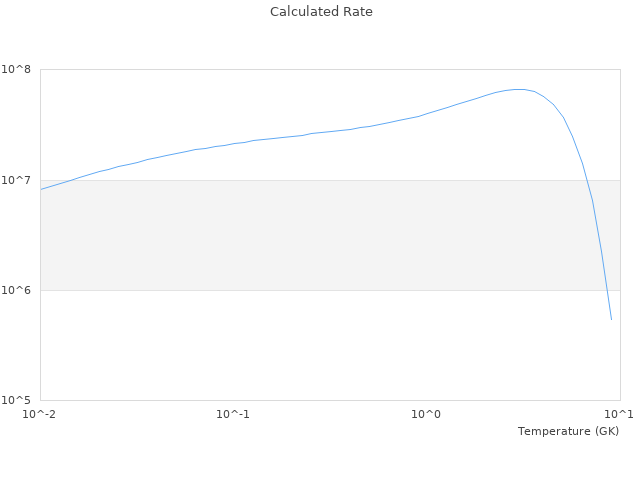

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
