Datapoints for p + ir197 -> pt198
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 7.300314e-147 |
| 0.15 | 4.016697e-88 |
| 0.2 | 1.497773e-59 |
| 0.3 | 2.064313e-34 |
| 0.4 | 1.023292e-24 |
| 0.5 | 2.091271e-20 |
| 0.6 | 2.765374e-18 |
| 0.7 | 4.046603e-17 |
| 0.8 | 2.230271e-16 |
| 0.9 | 8.130308e-16 |
| 1 | 2.557899e-15 |
| 1.5 | 1.071383e-12 |
| 2 | 9.206698e-10 |
| 2.5 | 5.121666e-07 |
| 3 | 9.710942e-05 |
| 3.5 | 5.296073e-03 |
| 4 | 8.864407e-02 |
| 4.5 | 5.385291e-01 |
| 5 | 1.459056e+00 |
| 6 | 2.211103e+00 |
| 7 | 1.500888e+00 |
| 8 | 1.751076e+00 |
| 9 | 1.057637e+01 |
| 10 | 8.104492e+02 |

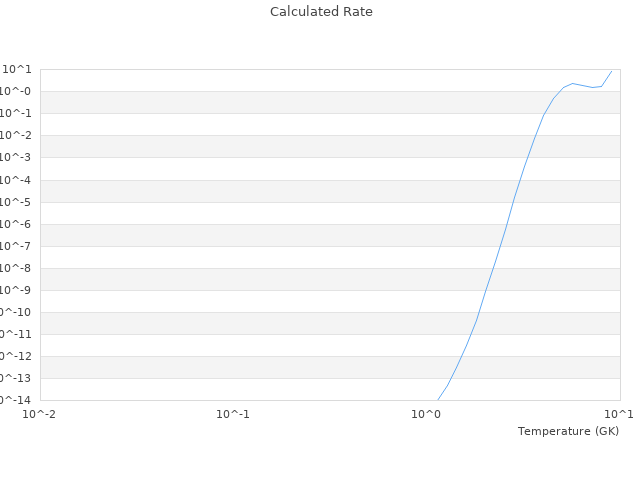

| View Graph | |
