Datapoints for si23 -> he4 + mg19
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 0.000000e+00 |
| 0.2 | INFe-310 |
| 0.3 | 1.136555e-206 |
| 0.4 | 2.436901e-154 |
| 0.5 | 1.408544e-122 |
| 0.6 | 3.515580e-101 |
| 0.7 | 9.509710e-86 |
| 0.8 | 4.542031e-74 |
| 0.9 | 6.583693e-65 |
| 1 | 1.609117e-57 |
| 1.5 | 6.395612e-35 |
| 2 | 2.965841e-23 |
| 2.5 | 4.566703e-16 |
| 3 | 3.636824e-11 |
| 3.5 | 1.351819e-07 |
| 4 | 7.164697e-05 |
| 4.5 | 1.015836e-02 |
| 5 | 5.648442e-01 |
| 6 | 2.605692e+02 |
| 7 | 2.285816e+04 |
| 8 | 6.966054e+05 |
| 9 | 1.037864e+07 |
| 10 | 9.315696e+07 |

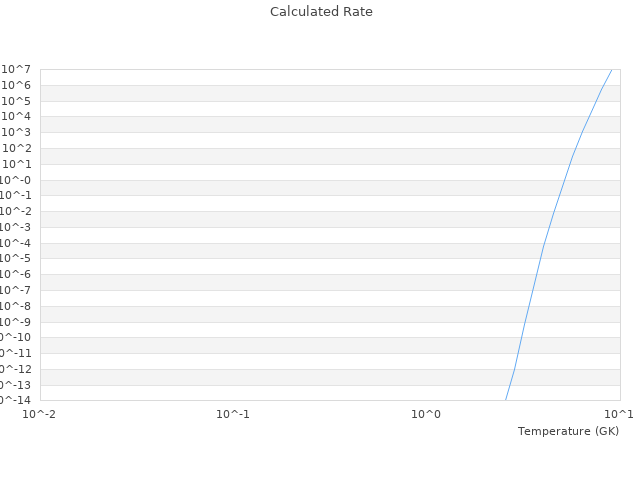

| View Graph | |
