Datapoints for sm139 -> he4 + nd135
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.032252e-237 |
| 0.15 | 7.690174e-160 |
| 0.2 | 4.556282e-117 |
| 0.3 | 2.635130e-72 |
| 0.4 | 7.468664e-50 |
| 0.5 | 9.284678e-37 |
| 0.6 | 2.310898e-28 |
| 0.7 | 1.327675e-22 |
| 0.8 | 1.927029e-18 |
| 0.9 | 2.644878e-15 |
| 1 | 7.475023e-13 |
| 1.5 | 1.291226e-05 |
| 2 | 1.125709e-01 |
| 2.5 | 6.854547e+01 |
| 3 | 1.057181e+04 |
| 3.5 | 6.511765e+05 |
| 4 | 1.977795e+07 |
| 4.5 | 3.358348e+08 |
| 5 | 3.491324e+09 |
| 6 | 1.153265e+11 |
| 7 | 1.165378e+12 |
| 8 | 5.374148e+12 |
| 9 | 1.580221e+13 |
| 10 | 3.927239e+13 |

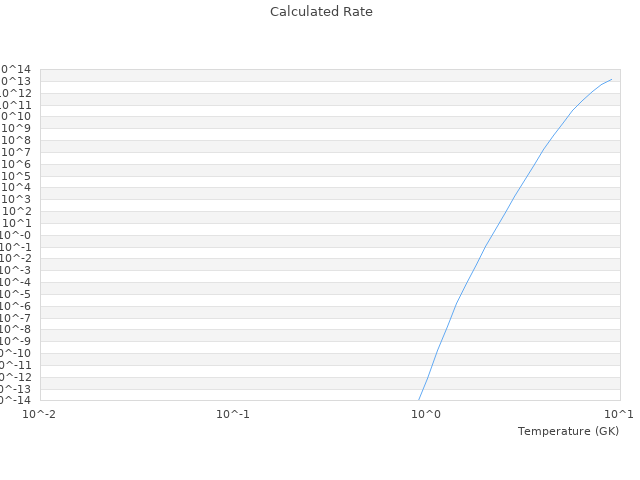

| View Graph | |
