Datapoints for he4 + cd116 -> sn120
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.640896e-93 |
| 0.15 | 5.502669e-77 |
| 0.2 | 8.058454e-67 |
| 0.3 | 3.802855e-54 |
| 0.4 | 3.220464e-46 |
| 0.5 | 1.258441e-40 |
| 0.6 | 2.134528e-36 |
| 0.7 | 4.767328e-33 |
| 0.8 | 2.615048e-30 |
| 0.9 | 5.161587e-28 |
| 1 | 4.704187e-26 |
| 1.5 | 2.652636e-19 |
| 2 | 3.067384e-15 |
| 2.5 | 1.739898e-12 |
| 3 | 1.734509e-10 |
| 3.5 | 5.700056e-09 |
| 4 | 8.777773e-08 |
| 4.5 | 7.849834e-07 |
| 5 | 4.686654e-06 |
| 6 | 7.074796e-05 |
| 7 | 4.893073e-04 |
| 8 | 2.027217e-03 |
| 9 | 5.917776e-03 |
| 10 | 1.351459e-02 |

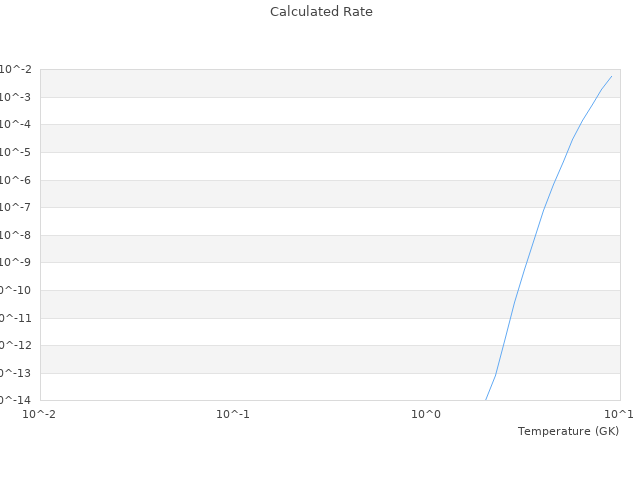

| View Graph | |
