Datapoints for sn120 -> he4 + cd116
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 0.000000e+00 |
| 0.15 | 5.547148e-229 |
| 0.2 | 3.206905e-178 |
| 0.3 | 7.128707e-125 |
| 0.4 | 1.488307e-96 |
| 0.5 | 1.078080e-78 |
| 0.6 | 2.901868e-66 |
| 0.7 | 4.839220e-57 |
| 0.8 | 6.926217e-50 |
| 0.9 | 3.801362e-44 |
| 1 | 2.005421e-39 |
| 1.5 | 2.507965e-24 |
| 2 | 4.905835e-16 |
| 2.5 | 1.033641e-10 |
| 3 | 5.599526e-07 |
| 3.5 | 3.309900e-04 |
| 4 | 4.573131e-02 |
| 4.5 | 2.300916e+00 |
| 5 | 5.563206e+01 |
| 6 | 7.097847e+03 |
| 7 | 2.337142e+05 |
| 8 | 3.205858e+06 |
| 9 | 2.424781e+07 |
| 10 | 1.205996e+08 |

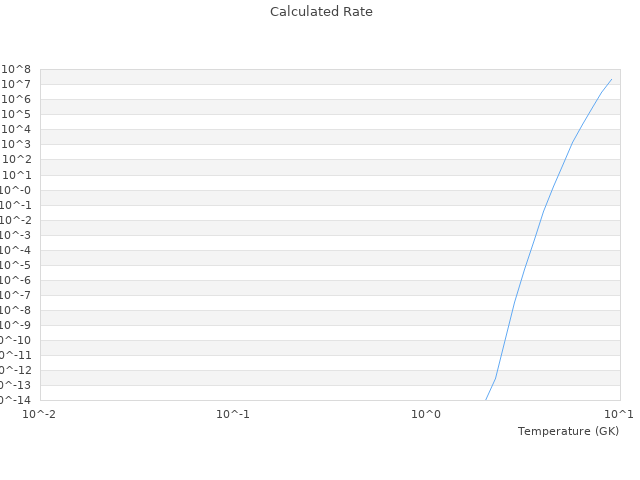

| View Graph | |
