Datapoints for tb136 -> p + gd135
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 7.263182e-14 |
| 0.15 | 5.502891e-09 |
| 0.2 | 6.152731e-07 |
| 0.3 | 1.333529e-04 |
| 0.4 | 6.908134e-03 |
| 0.5 | 1.978173e-01 |
| 0.6 | 3.727479e+00 |
| 0.7 | 4.984510e+01 |
| 0.8 | 4.982055e+02 |
| 0.9 | 3.879981e+03 |
| 1 | 2.437353e+04 |
| 1.5 | 2.269425e+07 |
| 2 | 1.758057e+09 |
| 2.5 | 3.368380e+10 |
| 3 | 2.760151e+11 |
| 3.5 | 1.305263e+12 |
| 4 | 4.241473e+12 |
| 4.5 | 1.053401e+13 |
| 5 | 2.138069e+13 |
| 6 | 5.627575e+13 |
| 7 | 9.396553e+13 |
| 8 | 1.080380e+14 |
| 9 | 8.821733e+13 |
| 10 | 5.149558e+13 |

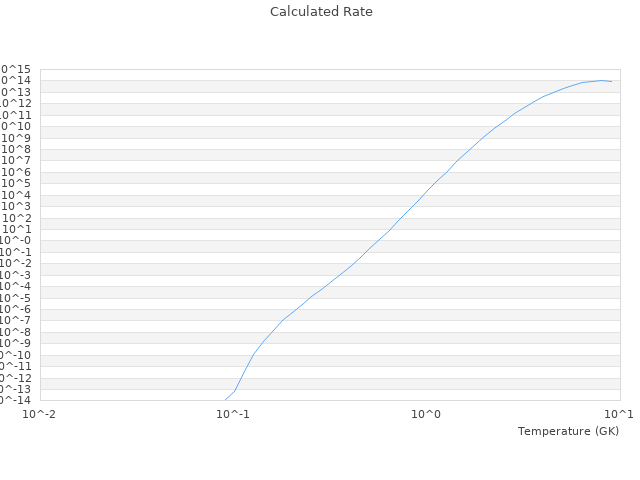

| View Graph | |
This material is based upon work supported in part by the U.S. Department of Energy, Office of Science, Office of Nuclear Physics, under Award Number DE-SC0026204.
