Datapoints for p + gd136 -> tb137
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.699579e-50 |
| 0.15 | 6.008153e-37 |
| 0.2 | 1.457839e-30 |
| 0.3 | 6.578910e-24 |
| 0.4 | 4.658659e-20 |
| 0.5 | 2.445348e-17 |
| 0.6 | 3.104765e-15 |
| 0.7 | 1.584439e-13 |
| 0.8 | 4.247571e-12 |
| 0.9 | 7.027729e-11 |
| 1 | 7.979447e-10 |
| 1.5 | 4.039701e-06 |
| 2 | 6.803825e-04 |
| 2.5 | 2.003074e-02 |
| 3 | 2.134301e-01 |
| 3.5 | 1.194294e+00 |
| 4 | 4.323288e+00 |
| 4.5 | 1.146009e+01 |
| 5 | 2.401895e+01 |
| 6 | 6.231661e+01 |
| 7 | 9.398429e+01 |
| 8 | 9.034858e+01 |
| 9 | 5.736767e+01 |
| 10 | 2.427902e+01 |

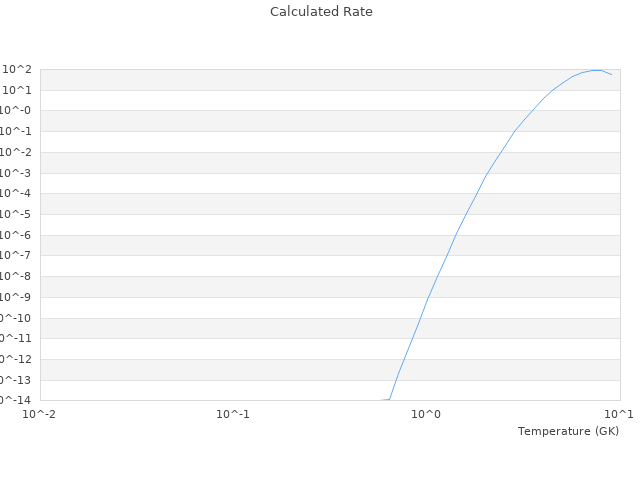

| View Graph | |
