Datapoints for tb137 -> p + gd136
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.050867e-16 |
| 0.15 | 1.994175e-11 |
| 0.2 | 4.026981e-09 |
| 0.3 | 1.804682e-06 |
| 0.4 | 1.446557e-04 |
| 0.5 | 5.567140e-03 |
| 0.6 | 1.302147e-01 |
| 0.7 | 2.057465e+00 |
| 0.8 | 2.351743e+01 |
| 0.9 | 2.047370e+02 |
| 1 | 1.414207e+03 |
| 1.5 | 1.843292e+06 |
| 2 | 1.789329e+08 |
| 2.5 | 4.082907e+09 |
| 3 | 3.860233e+10 |
| 3.5 | 2.055751e+11 |
| 4 | 7.365839e+11 |
| 4.5 | 1.977906e+12 |
| 5 | 4.259046e+12 |
| 6 | 1.193413e+13 |
| 7 | 1.971074e+13 |
| 8 | 2.083710e+13 |
| 9 | 1.454629e+13 |
| 10 | 6.753126e+12 |

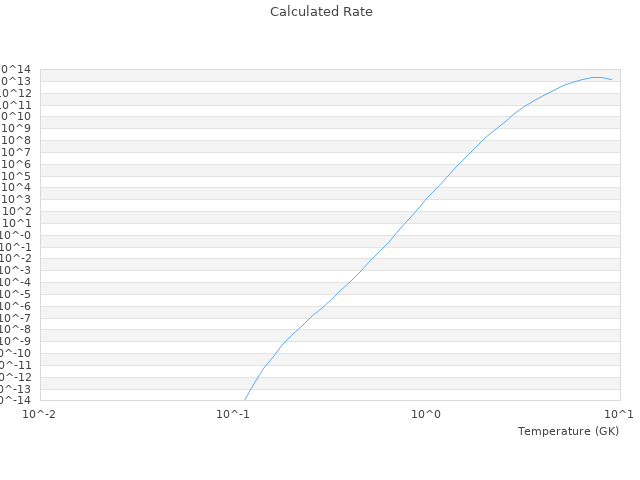

| View Graph | |
