Datapoints for he4 + sn127 -> te131
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.641325e-262 |
| 0.15 | 6.930535e-183 |
| 0.2 | 2.290655e-138 |
| 0.3 | 3.766830e-91 |
| 0.4 | 3.149258e-67 |
| 0.5 | 3.157924e-53 |
| 0.6 | 2.940593e-44 |
| 0.7 | 3.916914e-38 |
| 0.8 | 9.663644e-34 |
| 0.9 | 1.832018e-30 |
| 1 | 6.206063e-28 |
| 1.5 | 9.748581e-21 |
| 2 | 4.723690e-17 |
| 2.5 | 1.629316e-14 |
| 3 | 1.613256e-12 |
| 3.5 | 7.278123e-11 |
| 4 | 1.810978e-09 |
| 4.5 | 2.747582e-08 |
| 5 | 2.716721e-07 |
| 6 | 9.011525e-06 |
| 7 | 9.418687e-05 |
| 8 | 4.191643e-04 |
| 9 | 1.033440e-03 |
| 10 | 1.776218e-03 |

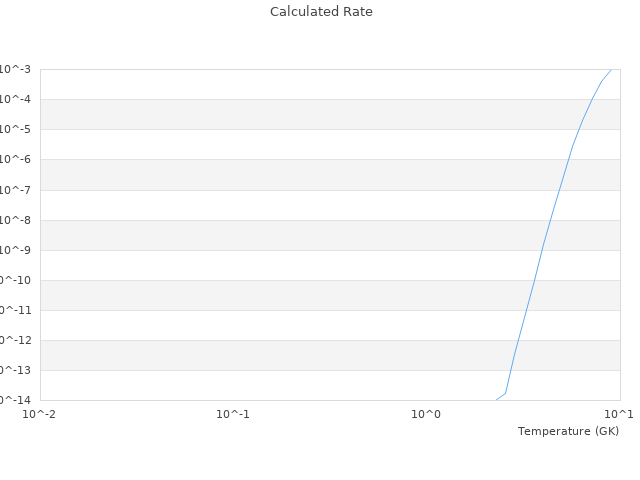

| View Graph | |
