Datapoints for p + tm171 -> yb172
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.772785e-128 |
| 0.15 | 1.245297e-76 |
| 0.2 | 1.845325e-51 |
| 0.3 | 2.443501e-29 |
| 0.4 | 8.576869e-21 |
| 0.5 | 5.768677e-17 |
| 0.6 | 4.734878e-15 |
| 0.7 | 5.674932e-14 |
| 0.8 | 2.885768e-13 |
| 0.9 | 1.014612e-12 |
| 1 | 3.103344e-12 |
| 1.5 | 8.874849e-10 |
| 2 | 3.388585e-07 |
| 2.5 | 6.725222e-05 |
| 3 | 4.274833e-03 |
| 3.5 | 8.013362e-02 |
| 4 | 4.944460e-01 |
| 4.5 | 1.213371e+00 |
| 5 | 1.467011e+00 |
| 6 | 5.962154e-01 |
| 7 | 1.561851e-01 |
| 8 | 9.572740e-02 |
| 9 | 3.899744e-01 |
| 10 | 2.449548e+01 |

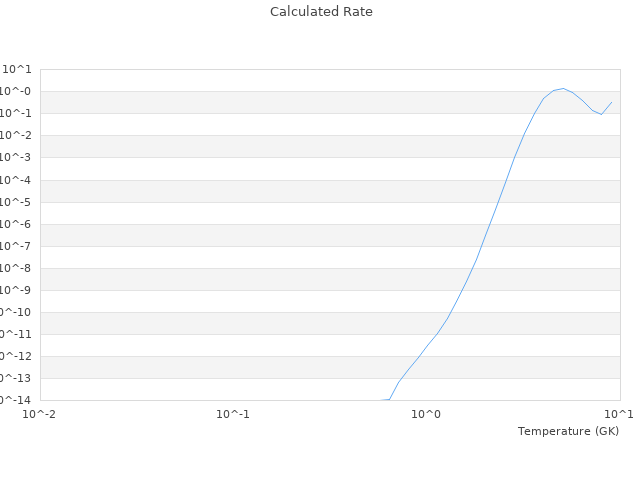

| View Graph | |
