Datapoints for zr77 -> he4 + sr73
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.087601e-191 |
| 0.15 | 1.513429e-137 |
| 0.2 | 1.057438e-108 |
| 0.3 | 1.034827e-77 |
| 0.4 | 7.547253e-61 |
| 0.5 | 5.238240e-50 |
| 0.6 | 2.429576e-42 |
| 0.7 | 1.417750e-36 |
| 0.8 | 4.785486e-32 |
| 0.9 | 2.247116e-28 |
| 1 | 2.527875e-25 |
| 1.5 | 2.445003e-15 |
| 2 | 1.201497e-09 |
| 2.5 | 7.109087e-06 |
| 3 | 3.754839e-03 |
| 3.5 | 4.470439e-01 |
| 4 | 1.965982e+01 |
| 4.5 | 4.268725e+02 |
| 5 | 5.495090e+03 |
| 6 | 2.975914e+05 |
| 7 | 5.706980e+06 |
| 8 | 5.361062e+07 |
| 9 | 2.989504e+08 |
| 10 | 1.118019e+09 |

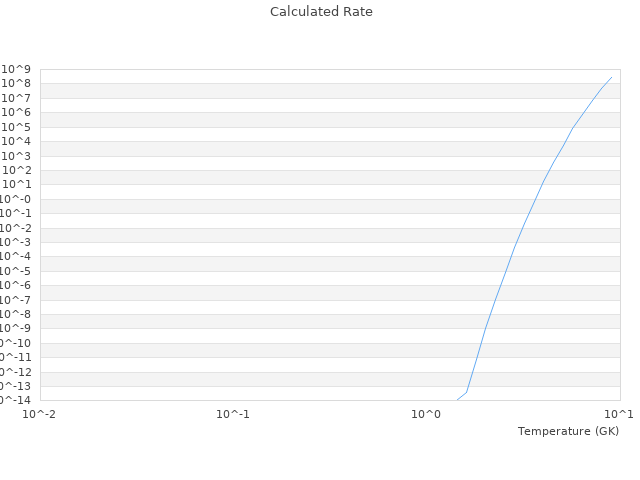

| View Graph | |
