Datapoints for n + gd156 -> gd157
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 9.380781e+07 |
| 0.15 | 9.375002e+07 |
| 0.2 | 9.492735e+07 |
| 0.3 | 9.893846e+07 |
| 0.4 | 1.038766e+08 |
| 0.5 | 1.090487e+08 |
| 0.6 | 1.140842e+08 |
| 0.7 | 1.187368e+08 |
| 0.8 | 1.228231e+08 |
| 0.9 | 1.262015e+08 |
| 1 | 1.287633e+08 |
| 1.5 | 1.275383e+08 |
| 2 | 1.050949e+08 |
| 2.5 | 7.245074e+07 |
| 3 | 4.208807e+07 |
| 3.5 | 2.074504e+07 |
| 4 | 8.729533e+06 |
| 4.5 | 3.153349e+06 |
| 5 | 9.825966e+05 |
| 6 | 6.229084e+04 |
| 7 | 2.291626e+03 |
| 8 | 5.015171e+01 |
| 9 | 6.666983e-01 |
| 10 | 5.481228e-03 |

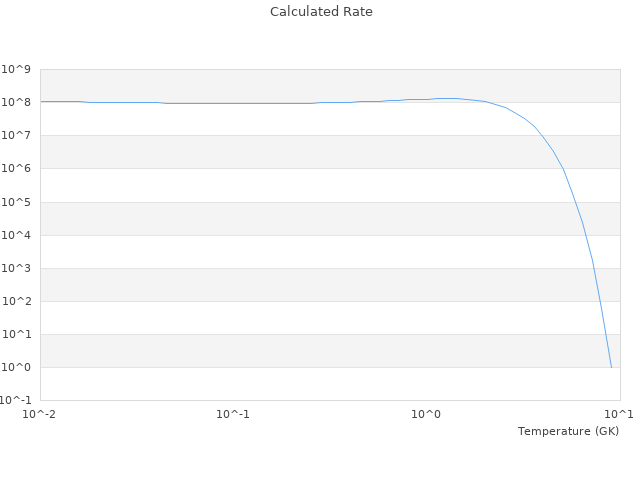

| View Graph | |
