Datapoints for ir194 -> n + ir193
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.348197e-289 |
| 0.15 | 3.443232e-187 |
| 0.2 | 4.723990e-136 |
| 0.3 | 7.769525e-85 |
| 0.4 | 3.609927e-59 |
| 0.5 | 9.861335e-44 |
| 0.6 | 2.038049e-33 |
| 0.7 | 4.949772e-26 |
| 0.8 | 1.763648e-20 |
| 0.9 | 3.751498e-16 |
| 1 | 1.106433e-12 |
| 1.5 | 3.205199e-02 |
| 2 | 5.898310e+03 |
| 2.5 | 8.522803e+06 |
| 3 | 1.049466e+09 |
| 3.5 | 3.075931e+10 |
| 4 | 3.596792e+11 |
| 4.5 | 2.239631e+12 |
| 5 | 8.841183e+12 |
| 6 | 5.293441e+13 |
| 7 | 1.315034e+14 |
| 8 | 1.778397e+14 |
| 9 | 1.527574e+14 |
| 10 | 9.164050e+13 |

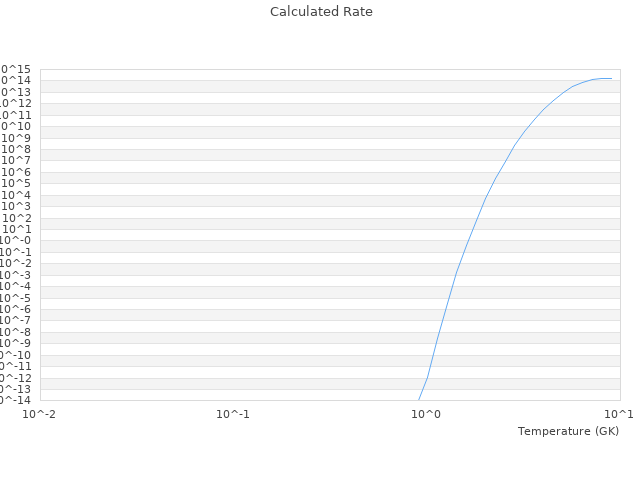

| View Graph | |
