Datapoints for n + yb176 -> yb177
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.820048e+07 |
| 0.15 | 1.844329e+07 |
| 0.2 | 1.840010e+07 |
| 0.3 | 1.831745e+07 |
| 0.4 | 1.846023e+07 |
| 0.5 | 1.880727e+07 |
| 0.6 | 1.930383e+07 |
| 0.7 | 1.990601e+07 |
| 0.8 | 2.058117e+07 |
| 0.9 | 2.130451e+07 |
| 1 | 2.205643e+07 |
| 1.5 | 2.575021e+07 |
| 2 | 2.842903e+07 |
| 2.5 | 2.933081e+07 |
| 3 | 2.822674e+07 |
| 3.5 | 2.536839e+07 |
| 4 | 2.133810e+07 |
| 4.5 | 1.683765e+07 |
| 5 | 1.249343e+07 |
| 6 | 5.768085e+06 |
| 7 | 2.132657e+06 |
| 8 | 6.396961e+05 |
| 9 | 1.573666e+05 |
| 10 | 3.204398e+04 |

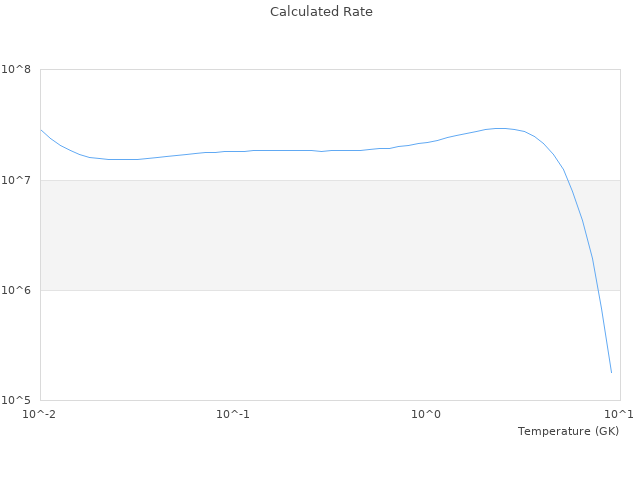

| View Graph | |
