Datapoints for cs114 -> p + xe113
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.458009e-10 |
| 0.15 | 5.964099e-08 |
| 0.2 | 2.613655e-06 |
| 0.3 | 8.177862e-04 |
| 0.4 | 6.322040e-02 |
| 0.5 | 2.099598e+00 |
| 0.6 | 3.925978e+01 |
| 0.7 | 4.825631e+02 |
| 0.8 | 4.300045e+03 |
| 0.9 | 2.968138e+04 |
| 1 | 1.663691e+05 |
| 1.5 | 1.077372e+08 |
| 2 | 7.632877e+09 |
| 2.5 | 1.498621e+11 |
| 3 | 1.279926e+12 |
| 3.5 | 6.142213e+12 |
| 4 | 1.944192e+13 |
| 4.5 | 4.519617e+13 |
| 5 | 8.323299e+13 |
| 6 | 1.727941e+14 |
| 7 | 2.355627e+14 |
| 8 | 2.541375e+14 |
| 9 | 2.453074e+14 |
| 10 | 2.305718e+14 |

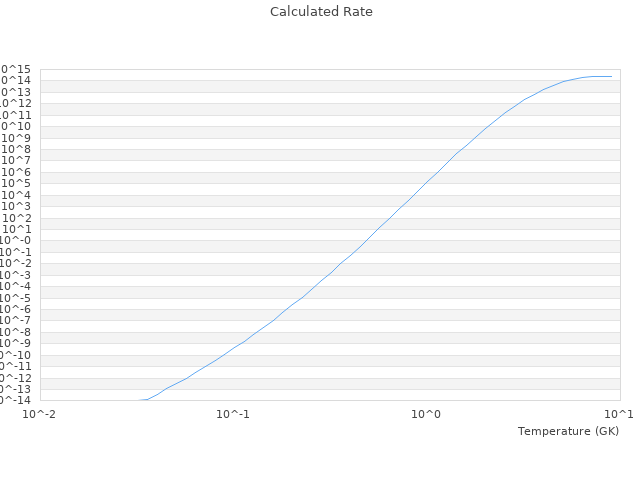

| View Graph | |
