Datapoints for db317 -> n + db316
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.965144e-91 |
| 0.15 | 6.452502e-56 |
| 0.2 | 3.200824e-38 |
| 0.3 | 1.696153e-20 |
| 0.4 | 1.277565e-11 |
| 0.5 | 2.739664e-06 |
| 0.6 | 9.842691e-03 |
| 0.7 | 3.403975e+00 |
| 0.8 | 2.718887e+02 |
| 0.9 | 8.159812e+03 |
| 1 | 1.232459e+05 |
| 1.5 | 3.879961e+08 |
| 2 | 1.857744e+10 |
| 2.5 | 1.594306e+11 |
| 3 | 5.595400e+11 |
| 3.5 | 1.145164e+12 |
| 4 | 1.633443e+12 |
| 4.5 | 1.794012e+12 |
| 5 | 1.611454e+12 |
| 6 | 8.201641e+11 |
| 7 | 2.593575e+11 |
| 8 | 5.611279e+10 |
| 9 | 8.785572e+09 |
| 10 | 1.031671e+09 |

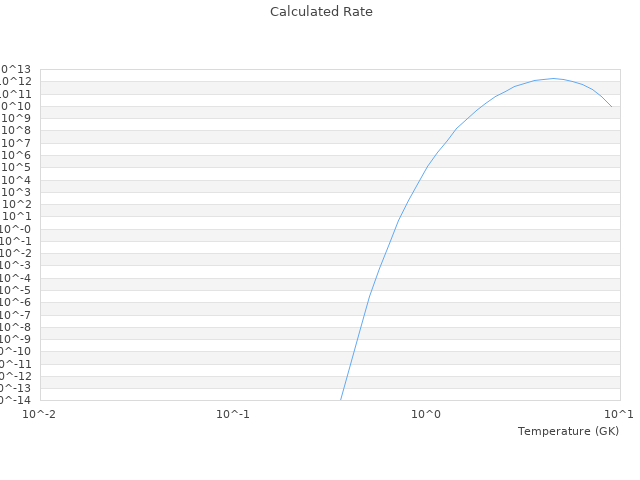

| View Graph | |
