Datapoints for db337 -> n + db336
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.244768e-22 |
| 0.15 | 6.034821e-11 |
| 0.2 | 2.701601e-05 |
| 0.3 | 1.256500e+01 |
| 0.4 | 8.749841e+03 |
| 0.5 | 4.486664e+05 |
| 0.6 | 6.225532e+06 |
| 0.7 | 4.086724e+07 |
| 0.8 | 1.678576e+08 |
| 0.9 | 5.039187e+08 |
| 1 | 1.213751e+09 |
| 1.5 | 1.656792e+10 |
| 2 | 5.703641e+10 |
| 2.5 | 1.078656e+11 |
| 3 | 1.450557e+11 |
| 3.5 | 1.548849e+11 |
| 4 | 1.387772e+11 |
| 4.5 | 1.076295e+11 |
| 5 | 7.363443e+10 |
| 6 | 2.476755e+10 |
| 7 | 5.616846e+09 |
| 8 | 8.890173e+08 |
| 9 | 1.004168e+08 |
| 10 | 8.224025e+06 |

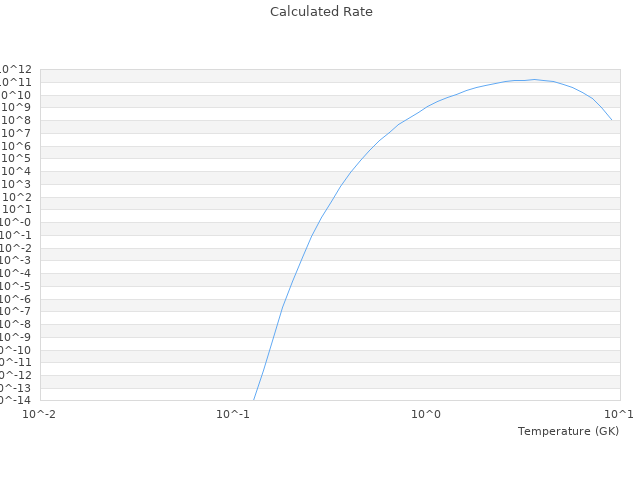

| View Graph | |
