Datapoints for p + mn46 -> fe47
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.710006e-19 |
| 0.15 | 3.429168e-15 |
| 0.2 | 3.243762e-12 |
| 0.3 | 1.339385e-08 |
| 0.4 | 1.328275e-06 |
| 0.5 | 3.090002e-05 |
| 0.6 | 3.308560e-04 |
| 0.7 | 2.122098e-03 |
| 0.8 | 9.388640e-03 |
| 0.9 | 3.141279e-02 |
| 1 | 8.483441e-02 |
| 1.5 | 1.820741e+00 |
| 2 | 8.581150e+00 |
| 2.5 | 2.193658e+01 |
| 3 | 4.124148e+01 |
| 3.5 | 6.491942e+01 |
| 4 | 9.148825e+01 |
| 4.5 | 1.198953e+02 |
| 5 | 1.494273e+02 |
| 6 | 2.098347e+02 |
| 7 | 2.701035e+02 |
| 8 | 3.316690e+02 |
| 9 | 3.983363e+02 |
| 10 | 4.625144e+02 |

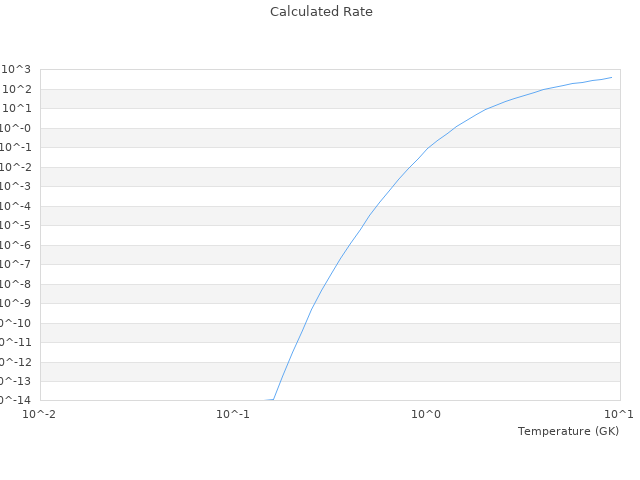

| View Graph | |
