Datapoints for p + xe111 -> he4 + i108
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.296064e-35 |
| 0.15 | 2.589895e-29 |
| 0.2 | 9.919403e-26 |
| 0.3 | 2.076480e-21 |
| 0.4 | 8.736674e-19 |
| 0.5 | 5.852441e-17 |
| 0.6 | 1.400763e-15 |
| 0.7 | 1.765909e-14 |
| 0.8 | 1.449124e-13 |
| 0.9 | 8.781454e-13 |
| 1 | 4.257666e-12 |
| 1.5 | 1.644766e-09 |
| 2 | 1.241170e-07 |
| 2.5 | 4.259961e-06 |
| 3 | 8.993476e-05 |
| 3.5 | 1.334904e-03 |
| 4 | 1.490887e-02 |
| 4.5 | 1.301424e-01 |
| 5 | 9.085665e-01 |
| 6 | 2.392428e+01 |
| 7 | 2.926443e+02 |
| 8 | 1.730566e+03 |
| 9 | 5.077401e+03 |
| 10 | 7.533445e+03 |

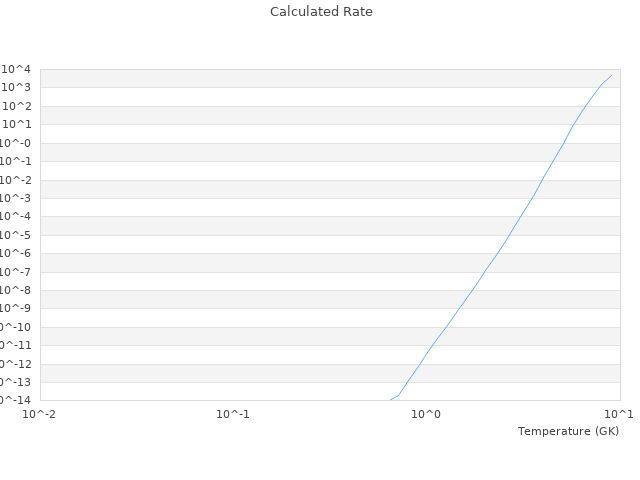

| View Graph | |
