Datapoints for p + al33 -> he4 + mg30
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.396660e-10 |
| 0.15 | 8.769524e-08 |
| 0.2 | 3.780737e-06 |
| 0.3 | 3.933247e-04 |
| 0.4 | 7.702174e-03 |
| 0.5 | 6.650151e-02 |
| 0.6 | 3.515574e-01 |
| 0.7 | 1.340030e+00 |
| 0.8 | 4.046005e+00 |
| 0.9 | 1.026798e+01 |
| 1 | 2.279284e+01 |
| 1.5 | 3.536185e+02 |
| 2 | 1.803251e+03 |
| 2.5 | 5.394585e+03 |
| 3 | 1.201439e+04 |
| 3.5 | 2.236620e+04 |
| 4 | 3.704184e+04 |
| 4.5 | 5.656722e+04 |
| 5 | 8.139031e+04 |
| 6 | 1.479419e+05 |
| 7 | 2.358135e+05 |
| 8 | 3.373840e+05 |
| 9 | 4.368981e+05 |
| 10 | 5.128957e+05 |

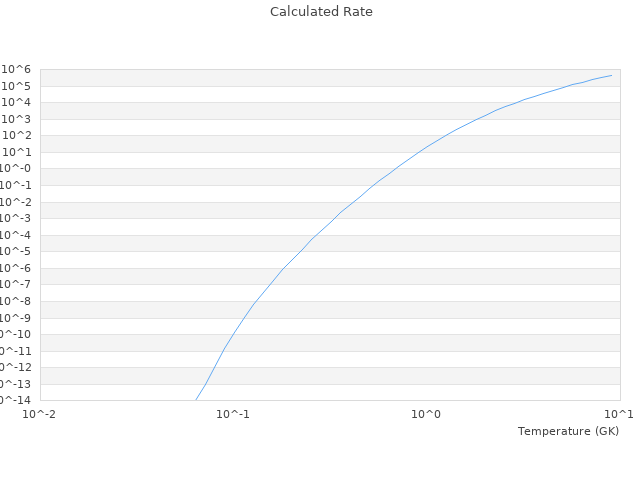

| View Graph | |
