Datapoints for p + mg31 -> he4 + na28
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.084872e-11 |
| 0.15 | 2.478958e-08 |
| 0.2 | 9.568435e-07 |
| 0.3 | 9.060842e-05 |
| 0.4 | 1.716514e-03 |
| 0.5 | 1.469684e-02 |
| 0.6 | 7.803677e-02 |
| 0.7 | 3.009965e-01 |
| 0.8 | 9.238955e-01 |
| 0.9 | 2.390639e+00 |
| 1 | 5.421095e+00 |
| 1.5 | 9.456049e+01 |
| 2 | 5.414522e+02 |
| 2.5 | 1.802422e+03 |
| 3 | 4.423045e+03 |
| 3.5 | 8.992635e+03 |
| 4 | 1.614435e+04 |
| 4.5 | 2.656371e+04 |
| 5 | 4.098320e+04 |
| 6 | 8.479400e+04 |
| 7 | 1.526851e+05 |
| 8 | 2.462737e+05 |
| 9 | 3.603114e+05 |
| 10 | 4.804863e+05 |

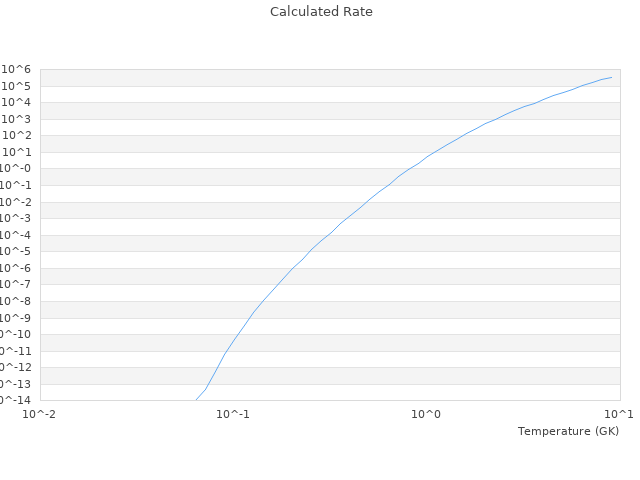

| View Graph | |
