Datapoints for n + mg21 -> he4 + ne18
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.698831e+07 |
| 0.15 | 3.137197e+07 |
| 0.2 | 3.524498e+07 |
| 0.3 | 4.208507e+07 |
| 0.4 | 4.815046e+07 |
| 0.5 | 5.368504e+07 |
| 0.6 | 5.881327e+07 |
| 0.7 | 6.360942e+07 |
| 0.8 | 6.812252e+07 |
| 0.9 | 7.238732e+07 |
| 1 | 7.642982e+07 |
| 1.5 | 9.390160e+07 |
| 2 | 1.077763e+08 |
| 2.5 | 1.188940e+08 |
| 3 | 1.278137e+08 |
| 3.5 | 1.349523e+08 |
| 4 | 1.406382e+08 |
| 4.5 | 1.451374e+08 |
| 5 | 1.486681e+08 |
| 6 | 1.535191e+08 |
| 7 | 1.563119e+08 |
| 8 | 1.578367e+08 |
| 9 | 1.586575e+08 |
| 10 | 1.591811e+08 |

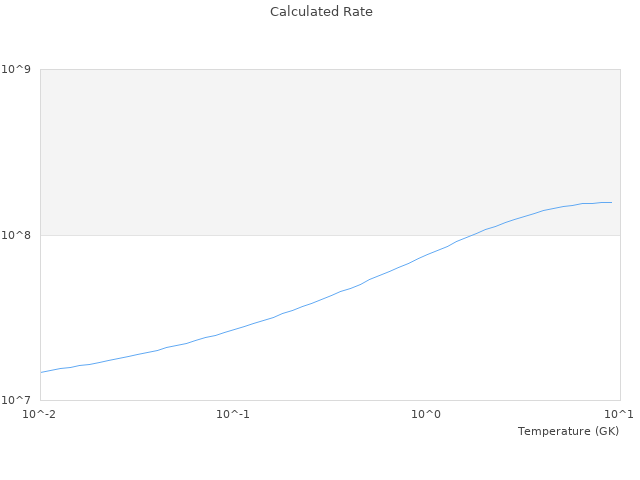

| View Graph | |
