Datapoints for p + na36 -> he4 + ne33
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 3.706468e-10 |
| 0.15 | 1.160066e-07 |
| 0.2 | 3.259883e-06 |
| 0.3 | 1.957949e-04 |
| 0.4 | 2.663064e-03 |
| 0.5 | 1.753396e-02 |
| 0.6 | 7.484493e-02 |
| 0.7 | 2.394994e-01 |
| 0.8 | 6.245158e-01 |
| 0.9 | 1.398630e+00 |
| 1 | 2.786776e+00 |
| 1.5 | 2.973153e+01 |
| 2 | 1.222626e+02 |
| 2.5 | 3.210740e+02 |
| 3 | 6.607743e+02 |
| 3.5 | 1.175278e+03 |
| 4 | 1.902296e+03 |
| 4.5 | 2.884312e+03 |
| 5 | 4.166544e+03 |
| 6 | 7.797190e+03 |
| 7 | 1.299078e+04 |
| 8 | 1.952986e+04 |
| 9 | 2.655260e+04 |
| 10 | 3.257152e+04 |

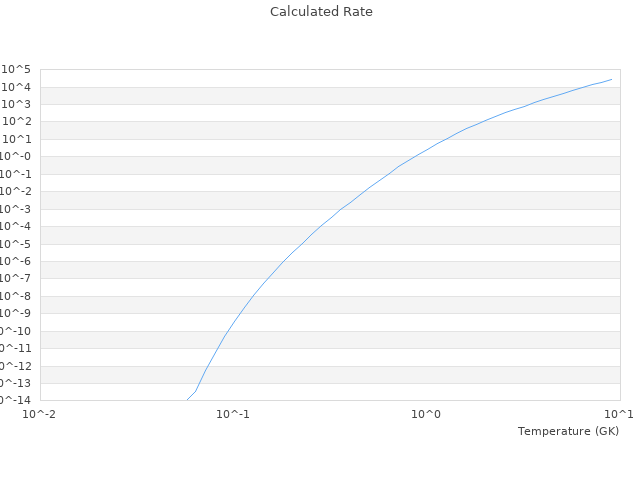

| View Graph | |
