Datapoints for p + na40 -> he4 + ne37
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.922938e-11 |
| 0.15 | 1.922660e-08 |
| 0.2 | 5.470286e-07 |
| 0.3 | 3.335091e-05 |
| 0.4 | 4.592927e-04 |
| 0.5 | 3.056720e-03 |
| 0.6 | 1.316690e-02 |
| 0.7 | 4.245489e-02 |
| 0.8 | 1.114116e-01 |
| 0.9 | 2.508523e-01 |
| 1 | 5.021106e-01 |
| 1.5 | 5.442613e+00 |
| 2 | 2.264078e+01 |
| 2.5 | 6.014235e+01 |
| 3 | 1.253464e+02 |
| 3.5 | 2.260732e+02 |
| 4 | 3.714385e+02 |
| 4.5 | 5.720414e+02 |
| 5 | 8.395121e+02 |
| 6 | 1.619877e+03 |
| 7 | 2.772443e+03 |
| 8 | 4.255870e+03 |
| 9 | 5.861919e+03 |
| 10 | 7.217201e+03 |

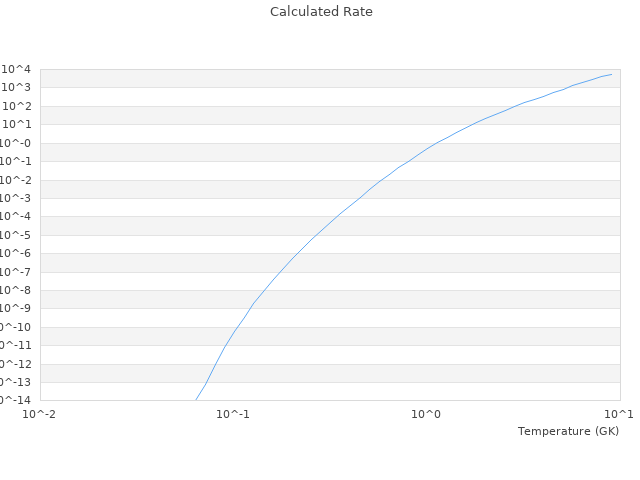

| View Graph | |
