Datapoints for n + re177 -> he4 + ta174
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.074832e+03 |
| 0.15 | 1.822522e+03 |
| 0.2 | 2.594441e+03 |
| 0.3 | 4.035489e+03 |
| 0.4 | 5.213110e+03 |
| 0.5 | 6.123909e+03 |
| 0.6 | 6.828097e+03 |
| 0.7 | 7.392976e+03 |
| 0.8 | 7.875216e+03 |
| 0.9 | 8.318356e+03 |
| 1 | 8.754989e+03 |
| 1.5 | 1.155400e+04 |
| 2 | 1.672579e+04 |
| 2.5 | 2.647786e+04 |
| 3 | 4.469273e+04 |
| 3.5 | 7.845330e+04 |
| 4 | 1.402486e+05 |
| 4.5 | 2.510279e+05 |
| 5 | 4.437556e+05 |
| 6 | 1.280838e+06 |
| 7 | 3.156695e+06 |
| 8 | 6.351178e+06 |
| 9 | 1.011032e+07 |
| 10 | 1.245367e+07 |

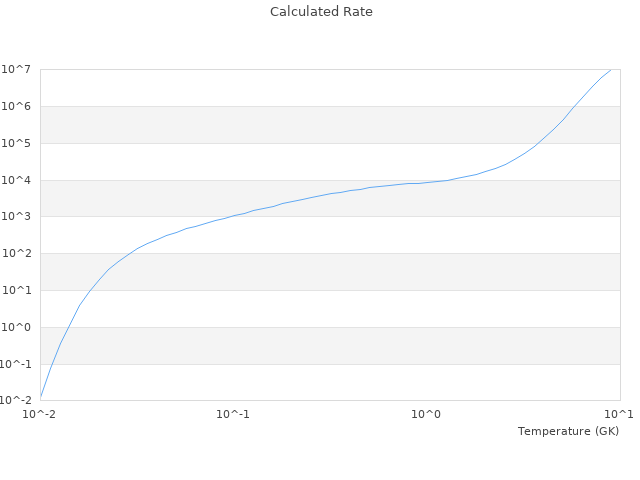

| View Graph | |
