Datapoints for p + dy139 -> he4 + tb136
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 2.293882e-122 |
| 0.15 | 2.049234e-72 |
| 0.2 | 7.024344e-49 |
| 0.3 | 2.680012e-29 |
| 0.4 | 1.521079e-22 |
| 0.5 | 5.431987e-20 |
| 0.6 | 5.429430e-19 |
| 0.7 | 1.436813e-18 |
| 0.8 | 2.497975e-18 |
| 0.9 | 4.168293e-18 |
| 1 | 7.770951e-18 |
| 1.5 | 1.673042e-15 |
| 2 | 2.516551e-12 |
| 2.5 | 3.237868e-09 |
| 3 | 1.445350e-06 |
| 3.5 | 1.750650e-04 |
| 4 | 6.043004e-03 |
| 4.5 | 7.069507e-02 |
| 5 | 3.488087e-01 |
| 6 | 1.571259e+00 |
| 7 | 2.995209e+00 |
| 8 | 1.013248e+01 |
| 9 | 1.963220e+02 |
| 10 | 5.631176e+04 |

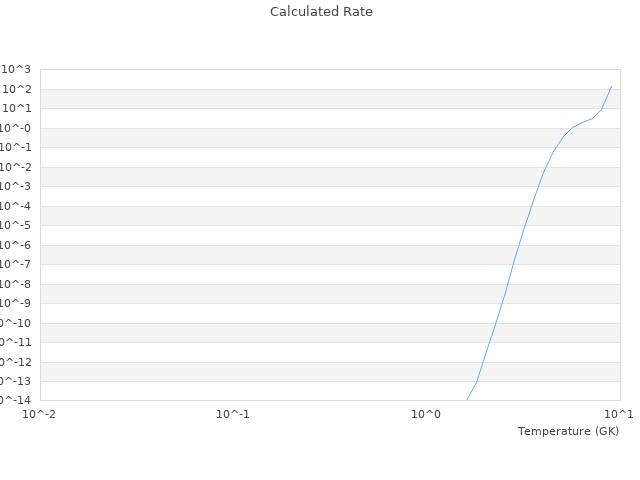

| View Graph | |
