Datapoints for p + dy171 -> he4 + tb168
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.105505e-188 |
| 0.15 | 2.591086e-120 |
| 0.2 | 5.255283e-85 |
| 0.3 | 2.034154e-51 |
| 0.4 | 7.643594e-37 |
| 0.5 | 1.672767e-29 |
| 0.6 | 2.026790e-25 |
| 0.7 | 5.919686e-23 |
| 0.8 | 2.414360e-21 |
| 0.9 | 3.337720e-20 |
| 1 | 2.510612e-19 |
| 1.5 | 2.946307e-16 |
| 2 | 1.275880e-13 |
| 2.5 | 3.615348e-11 |
| 3 | 5.180444e-09 |
| 3.5 | 3.278431e-07 |
| 4 | 9.152170e-06 |
| 4.5 | 1.217156e-04 |
| 5 | 8.652445e-04 |
| 6 | 1.127233e-02 |
| 7 | 5.705108e-02 |
| 8 | 2.860748e-01 |
| 9 | 3.156911e+00 |
| 10 | 1.494303e+02 |

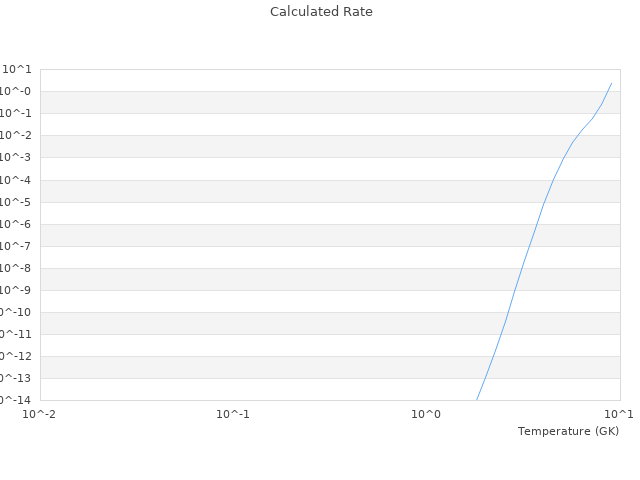

| View Graph | |
