Datapoints for he4 + te109 -> p + i112
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | INFe-316 |
| 0.15 | 3.878794e-217 |
| 0.2 | 1.285112e-166 |
| 0.3 | 4.534643e-115 |
| 0.4 | 1.236987e-88 |
| 0.5 | 2.047993e-72 |
| 0.6 | 2.219017e-61 |
| 0.7 | 2.394601e-53 |
| 0.8 | 3.260751e-47 |
| 0.9 | 2.328245e-42 |
| 1 | 2.064861e-38 |
| 1.5 | 4.634413e-26 |
| 2 | 2.057977e-19 |
| 2.5 | 3.779483e-15 |
| 3 | 3.971657e-12 |
| 3.5 | 7.583343e-10 |
| 4 | 4.751635e-08 |
| 4.5 | 1.366486e-06 |
| 5 | 2.214707e-05 |
| 6 | 1.699721e-03 |
| 7 | 4.082546e-02 |
| 8 | 4.282791e-01 |
| 9 | 2.378155e+00 |
| 10 | 7.879794e+00 |

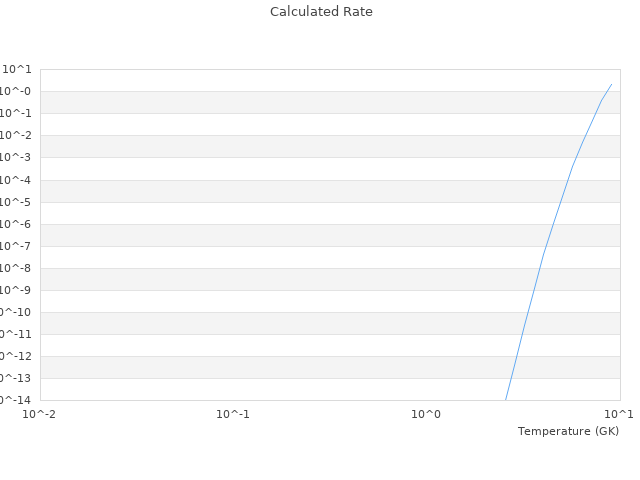

| View Graph | |
