Datapoints for p + au176 -> hg177
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 4.102450e-141 |
| 0.15 | 8.412889e-84 |
| 0.2 | 5.083977e-56 |
| 0.3 | 1.169391e-31 |
| 0.4 | 2.803796e-22 |
| 0.5 | 4.354551e-18 |
| 0.6 | 5.436180e-16 |
| 0.7 | 8.378152e-15 |
| 0.8 | 5.136276e-14 |
| 0.9 | 2.134872e-13 |
| 1 | 7.717574e-13 |
| 1.5 | 5.762357e-10 |
| 2 | 6.335326e-07 |
| 2.5 | 3.363752e-04 |
| 3 | 4.932113e-02 |
| 3.5 | 1.809701e+00 |
| 4 | 1.874281e+01 |
| 4.5 | 6.763229e+01 |
| 5 | 1.079922e+02 |
| 6 | 6.127347e+01 |
| 7 | 1.936092e+01 |
| 8 | 1.442338e+01 |
| 9 | 8.155093e+01 |
| 10 | 8.981164e+03 |

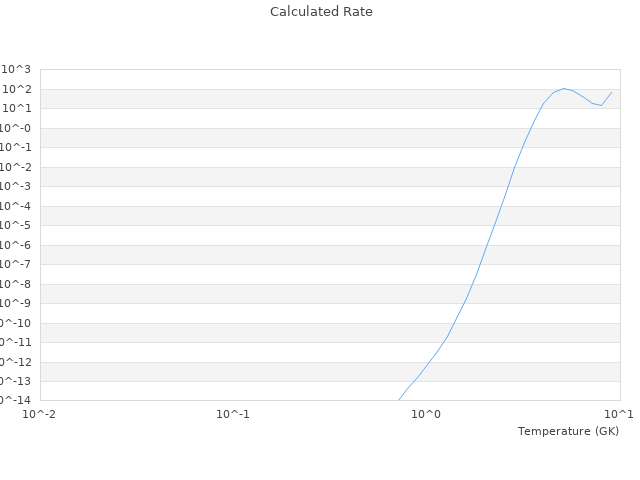

| View Graph | |
