Datapoints for p + na19 -> mg20
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 5.904356e-06 |
| 0.15 | 4.897717e-04 |
| 0.2 | 6.792552e-03 |
| 0.3 | 1.451690e-01 |
| 0.4 | 8.399558e-01 |
| 0.5 | 2.636297e+00 |
| 0.6 | 5.886612e+00 |
| 0.7 | 1.065031e+01 |
| 0.8 | 1.676015e+01 |
| 0.9 | 2.392981e+01 |
| 1 | 3.184040e+01 |
| 1.5 | 7.372891e+01 |
| 2 | 1.086031e+02 |
| 2.5 | 1.341908e+02 |
| 3 | 1.531107e+02 |
| 3.5 | 1.680253e+02 |
| 4 | 1.808180e+02 |
| 4.5 | 1.927065e+02 |
| 5 | 2.044616e+02 |
| 6 | 2.293586e+02 |
| 7 | 2.577083e+02 |
| 8 | 2.904527e+02 |
| 9 | 3.279353e+02 |
| 10 | 3.701116e+02 |

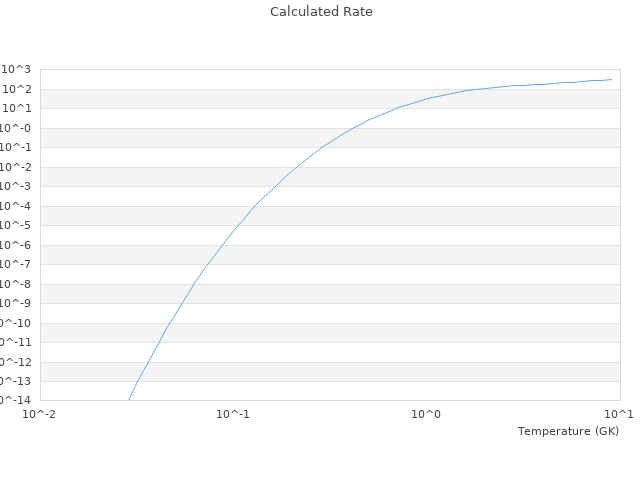

| View Graph | |
