Datapoints for p + na20 -> mg21
Back to rateCalculate Rate at a
Specific Temperature
Data Points for
Standard Temperatures
| Temperature | Value |
|---|---|
| 0.1 | 1.288342e-06 |
| 0.15 | 1.113267e-04 |
| 0.2 | 9.110997e-04 |
| 0.3 | 6.301335e-03 |
| 0.4 | 1.949752e-02 |
| 0.5 | 1.030991e-01 |
| 0.6 | 5.349969e-01 |
| 0.7 | 1.894216e+00 |
| 0.8 | 4.943952e+00 |
| 0.9 | 1.041743e+01 |
| 1 | 1.884815e+01 |
| 1.5 | 1.062346e+02 |
| 2 | 2.352557e+02 |
| 2.5 | 3.600405e+02 |
| 3 | 4.616155e+02 |
| 3.5 | 5.387869e+02 |
| 4 | 5.967322e+02 |
| 4.5 | 6.416388e+02 |
| 5 | 6.788694e+02 |
| 6 | 7.457913e+02 |
| 7 | 8.187034e+02 |
| 8 | 9.078070e+02 |
| 9 | 1.017314e+03 |
| 10 | 1.148337e+03 |

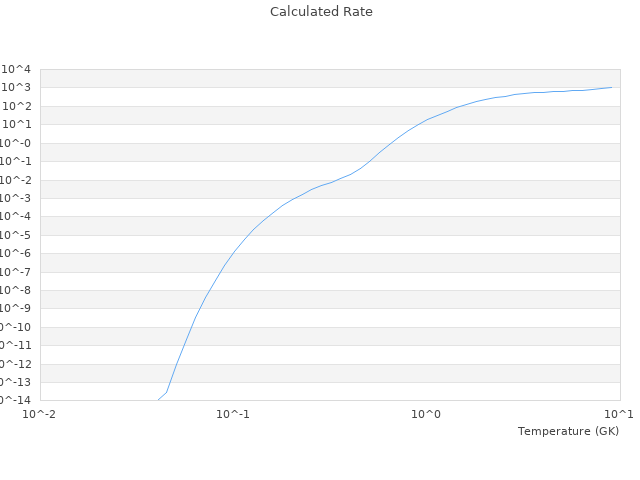

| View Graph | |
